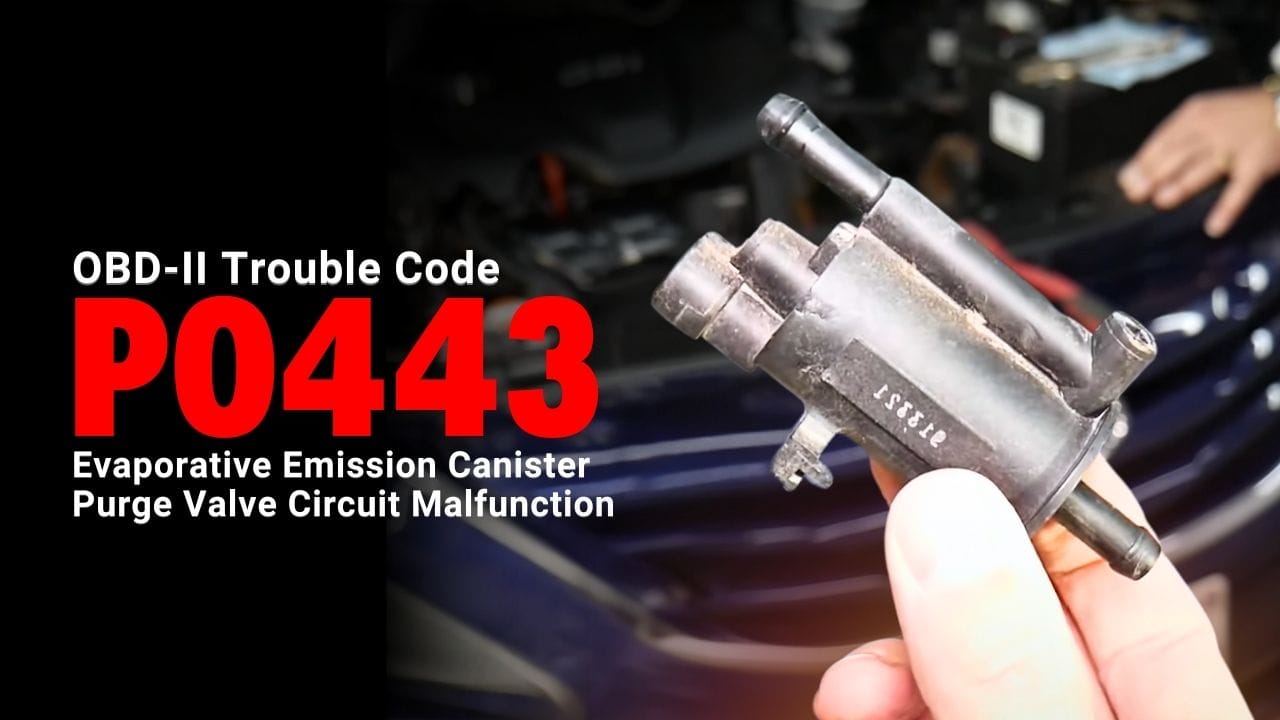

How To Fix P0443? | Evaporative Emission Canister Purge Valve Circuit Malfunction
When you purchase through links on our site, we may earn an affiliate commission. See our affiliate disclaimer for more information.
What does the P0443 ? | Evaporative Emission Canister Purge Valve Circuit Malfunction detected mean?
P0443 code gets triggered when the Engine Control Module (ECM) detects an issue in the electrical circuit controlling the purge valve of the Evaporative Emission Control (EVAP) system.
In simple terms, it means PCM loses control over this valve—due to electrical faults, component failure, or wiring issues.
What is EVAP System?
The purpose of the EVAP system is simple but vital: it’s designed to prevent fuel vapors from escaping into the atmosphere, which helps reduce air pollution.
Basically, it’s a collection of components that create a sealed environment, capturing, storing, and eventually purging volatile fuel vapors from the fuel system.
The primary components of the EVAP system include:
- Fuel Tank
- Gas Cap
- Purge Valve
- Vent Valve, and
- The Charcoal Canister.
When the engine is off, fuel vapors are stored in the charcoal canister, instead of being released into the atmosphere.
Once the engine is running and the conditions are right, the purge valve opens. This allows those stored vapors to flow into the engine, where they’re burned during the normal combustion process.
And what about the vent valve? It usually stays open, allowing fresh air to flow into the charcoal canister to ensure proper operation.
When the P0443 Triggers?

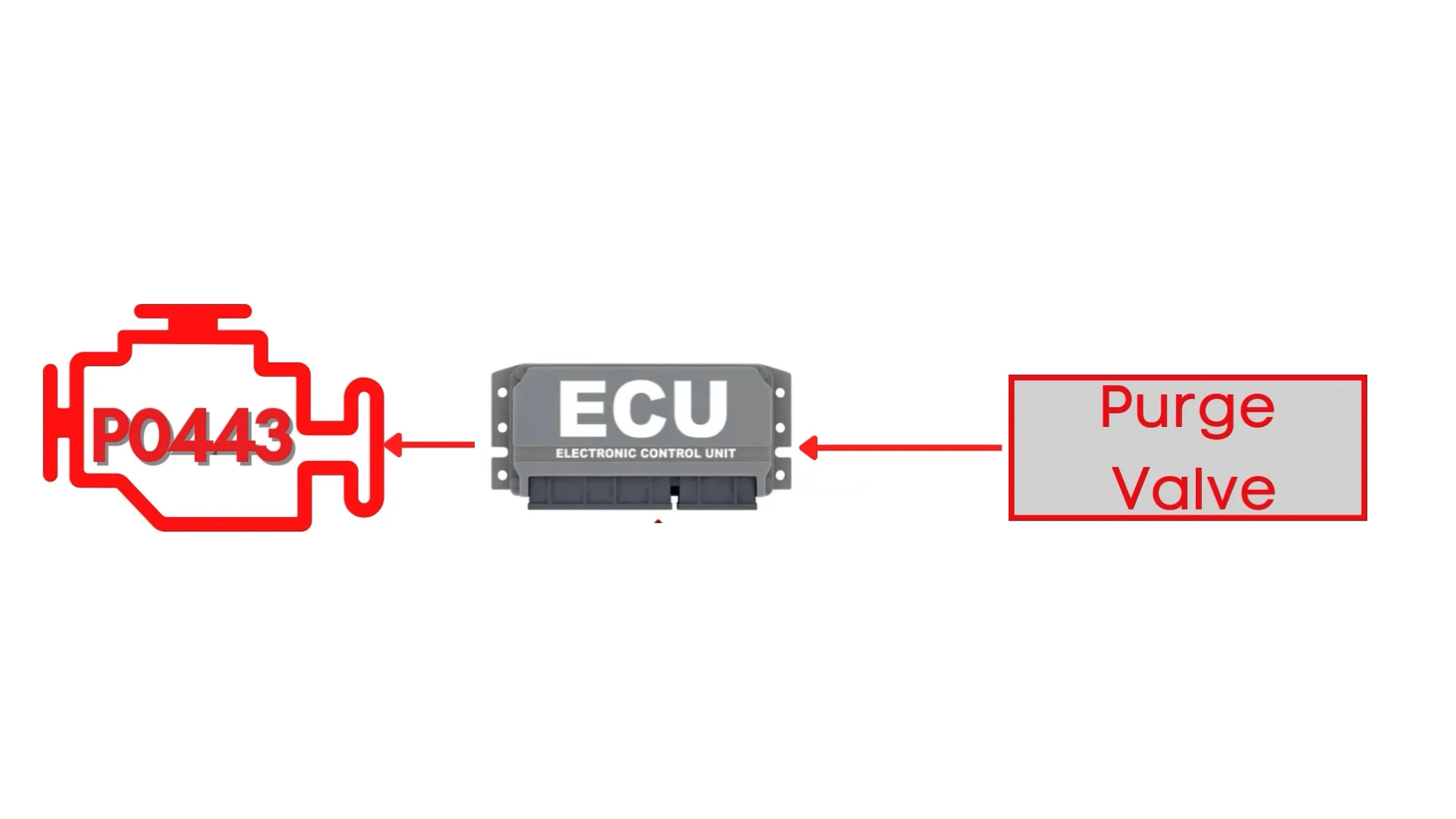

The purge valve in the EVAP system is an electrically controlled solenoid. The PCM (Powertrain Control Module) decides when to open and close this valve so that trapped fuel vapors can be released into the engine at the right time.
But here’s the issue: if something goes wrong with the purge valve or its circuit, the PCM loses control over it.
When the PCM detects that it cannot properly command or operate the purge valve, it sets the P0443 code.
How To Fix P0443?
Troubleshooting P0443 involves several steps, and we’ll discuss each one in detail. Let’s get started!
Before diving into specific repairs, perform an OBD-II scanner reset to clear the codes. Sometimes, these codes pop up due to recent maintenance work and can resolve themselves after a reset.
To reset the error codes, use an OBD-II scanner. Simply connect the scanner to your vehicle, follow the instructions to clear the trouble codes, and see if the P0443 code reappears.
If the code comes back, it means there’s a persistent issue that needs further troubleshooting.
Possible Root Causes of P0443
Some common root causes of the P0443 error code include:
1. Faulty EVAP Vent Solenoid
The EVAP vent solenoid, which allows fresh air into the system, can fail and cause a leak.
- Maintenance Service: 365 days Maintenance Service
- Attention: If you encounter unstable idle speed, especially when it is difficult to start after refueling, poor fuel eco…
- Application: Vapor Canister Valve Solenoid for 2004-2010 Chevy Silverado 1500; 2007 Chevy Silverado 1500 Classic; 2005-2…
2. Faulty EVAP Purge Valve
The EVAP purge valve, responsible for sending vapors to the engine, might be the culprit if it’s not functioning correctly.
- Motorcraft Vapor Canister Valve – CX2695
- Item Package Dimension: 9.95L x 7.19W x 3.53H inches
- Item Package Weight – 0.24 Pounds
3. Check for Broken Wire
Wiring problems around the purge valve are a common cause of code P0443. A broken, frayed, or corroded wire can interrupt the electrical connection between the purge valve and the PCM.
Fix:
- Carefully inspect the wiring and connectors near the purge valve.
- Repair or replace any damaged wires.
- Perform a continuity test with a digital multimeter to ensure proper electrical flow.
- Additional Tips – The following incorrect operations may cause the multimeter not to show results: Firstly, the plugs of…
- Versatile Digital Multimeter – Accurately measures AC/DC Voltage, DC Current, Resistance, and Diode. This Multimeter is …
- Troubleshooting with Accuracy – This Multimeter has a sampling speed of 2 times per second; Built-in a backlight LCD dis…
4. Check for a Blown Fuse.
First, locate your car’s fuse box. You’ll need to find the specific fuse that controls the Purge Valve. To do that, check the diagram on the back of the fuse box cover—it’ll tell you which fuse is the one you’re looking for.
Fix: Once you’ve found the fuse, inspect it closely. If the fuse link is broken, it’ll need to be replaced.
