What does the P0101 Mass or Volume Air Flow “A” Circuit Range/Performance Problem mean?
The P0101 code is a generic powertrain diagnostic trouble code (DTC) that indicates a Range/Performance Problem in the Mass or Volume Air Flow (MAF) “A” Circuit.
The MAF sensor is responsible for measuring the amount and density of air entering the engine. This data is crucial for the Engine Control Module (ECM) to calculate the correct air-fuel ratio for efficient combustion.
Typically, the MAF sensor is mounted in the engine’s air intake tract, downstream from the air filter. It continuously monitors airflow and sends this information to the ECM, helping the engine adjust fuel injection and ignition timing accordingly.
The voltage produced by the MAF sensor varies based on the amount of air flowing through it. The ECU expects this signal to fall within a specific range that corresponds to engine RPM and load conditions. If the MAF signal goes outside the expected range—either too high or too low—the ECU identifies it as an abnormal reading. When this happens, the ECU ignores the faulty signal and sets a diagnostic trouble code (DTC), P0101.
When the P0101 Triggers?
For the fuel injection system to operate correctly, the Engine Control Module (ECM) or Powertrain Control Module (PCM) must know the exact mass of air entering the engine. This information allows it to calculate the proper amount of fuel needed for efficient combustion.

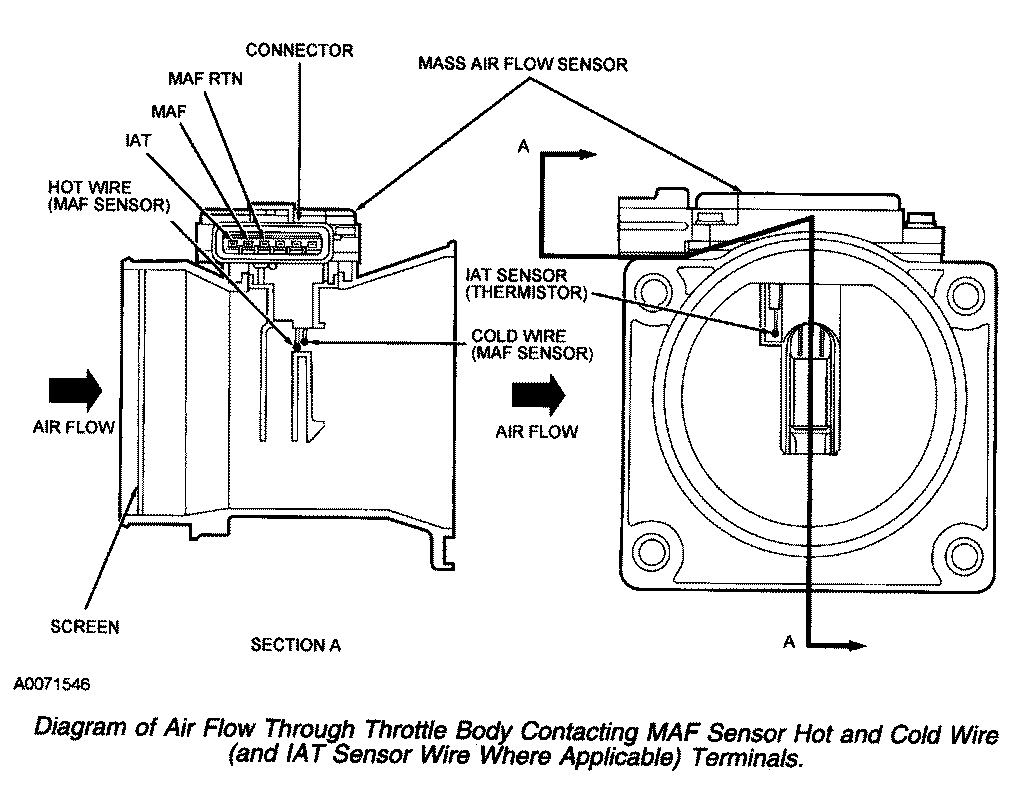

Most Mass Air Flow (MAF) sensors use a “hot wire” measuring principle. Inside the sensor, a thin platinum wire is electrically heated to a specific temperature—usually several hundred degrees Celsius above ambient air. Many designs include a second “cold wire” that measures the surrounding air temperature for reference.
As air passes through the sensor, it cools the hot wire. To maintain the correct temperature difference between the hot and cold wires, the sensor increases the electrical current to the hot wire. The amount of additional current required is directly proportional to the airflow rate, and this information is sent to the ECM/PCM.
Depending on the vehicle, MAF sensors transmit either a voltage signal or a frequency signal to indicate airflow.
Some Asian vehicles use a sonic-type MAF sensor, which works differently. This design features a tiny speaker that emits a high-frequency sound wave toward a receiver across the airflow passage. The deflection or delay of the sound wave—caused by the airflow—provides precise input to the ECM/PCM about the air entering the engine.
When the ECM detects that the MAF sensor signal is out of range, or inconsistent, it triggers the P0101 trouble code.
How To Fix P0101?
Troubleshooting P0101 involves several steps, and we’ll discuss each one in detail. Let’s get started!
Before diving into specific repairs, perform an OBD-II scanner reset to clear the codes. Sometimes, these codes pop up due to recent maintenance work and can resolve themselves after a reset.
To reset the error codes, use an OBD-II scanner. Simply connect the scanner to your vehicle, follow the instructions to clear the trouble codes, and see if the P0101 code reappears.
If the code comes back, it means there’s a persistent issue that needs further troubleshooting.
Possible Root Causes of P0101
Some common root causes of the P0101 error code include:
1. Dirt Build-Up on the MAF Sensor Wire or Filament
This is one of the most common reasons for the P0101 code. Over time, dust, oil, and debris from the intake air can accumulate on the MAF sensor’s hot wire or sensing element, preventing it from accurately measuring the incoming air. When this happens, the sensor provides incorrect airflow readings to the ECM, triggering the code.
Fix: Use a dedicated MAF sensor cleaner (never use carburetor or brake cleaner) to gently clean the sensor element. Allow it to dry completely before reinstalling. In most cases, cleaning the MAF sensor will resolve the issue and clear the P0101 code.
- Increases Horsepower And Improves Air/Fuel Ratio And Mpg
- Plastic Safe-Dries In Seconds
- Not Voc Compliant For California & Otc
2. Open or Shorted Wiring in the FVCV Circuit
Wiring issues such as open circuits, shorted wires, or corroded connectors can disrupt the electrical communication between the MAF sensor and the Powertrain Control Module (PCM). When this connection is compromised, the sensor cannot transmit accurate airflow data, causing the PCM to misinterpret engine conditions and trigger the P0101 code.
Fix: Inspect the wiring harness and electrical connectors for any visible signs of wear, fraying, or corrosion. Use a Digital Multimeter (DMM) to verify continuity, reference voltage, and ground integrity in the circuit. Repair or replace any damaged wires or connectors as necessary to restore proper signal flow.
- Additional Tips – The following incorrect operations may cause the multimeter not to show results: Firstly, the plugs of…
- Versatile Digital Multimeter – Accurately measures AC/DC Voltage, DC Current, Resistance, and Diode. This Multimeter is …
- Troubleshooting with Accuracy – This Multimeter has a sampling speed of 2 times per second; Built-in a backlight LCD dis…
3. Faulty MAF Sensor
Over time, the Mass Air Flow (MAF) sensor itself can fail due to internal electronic faults, wear, or contamination. A failing MAF sensor may produce erratic or inaccurate readings, causing the ECM/PCM to receive incorrect airflow data. This disrupts the air-fuel mixture, leading to poor engine performance and the activation of the P0101 code.
Fix: If cleaning the MAF sensor does not resolve the issue, test the sensor using a digital multimeter or an OBD-II scan tool to verify proper signal voltage or frequency output. If the readings are outside of the manufacturer’s specifications, replace the MAF sensor with a high-quality OEM or equivalent unit.
