What does the P0042 HO2S Heater Control Circuit (Bank 1, Sensor 3) mean?

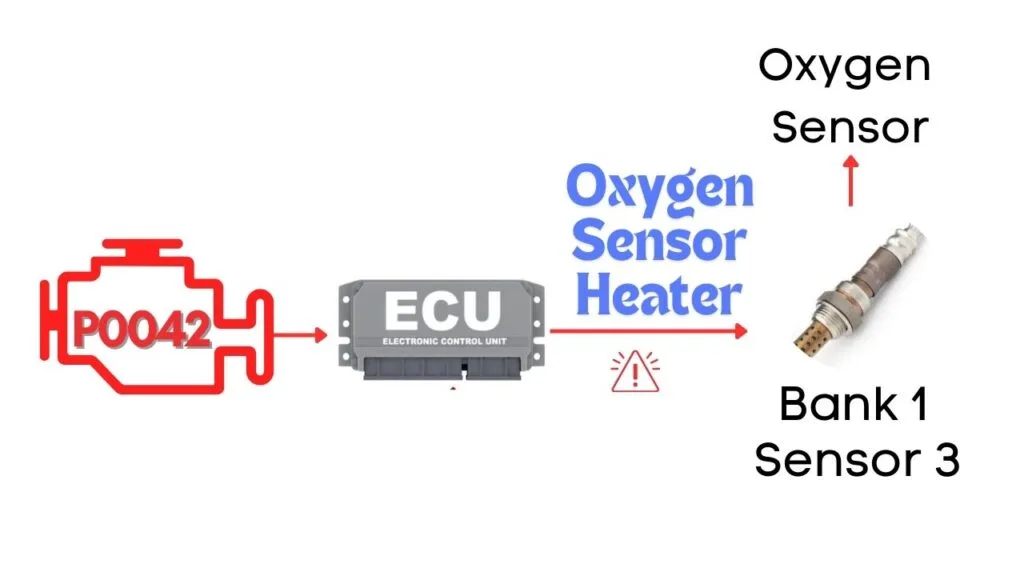

P0042 code gets triggered when the Engine Control Module detects a fault in the heater circuit of the oxygen sensor. Specifically, we’re talking about the oxygen sensor heater circuit for Bank 1, Sensor 3.
When the P0042 Triggers?
Your vehicle’s oxygen sensor plays a vital role in monitoring the oxygen content in the exhaust gases. It sends this data to the ECU, which then uses it to maintain the optimal air-fuel ratio
The ECU controls the air-fuel ratio by adjusting the timing of the engine’s valves, allowing just the right amount of air and fuel to enter the combustion chamber.
But here’s the thing: an oxygen sensor won’t function correctly until it’s heated to a certain temperature—around 600°F for conventional sensors. That’s where the heater circuit comes in. It’s designed to warm up the sensor quickly, so it starts working sooner.
The ECU regularly checks this heater circuit to make sure it’s functioning properly. If the ECU detects a problem with the heater circuit in the oxygen sensor on Bank 1, Sensor 3, it triggers the P0042 code.
What is Bank 1 Sensor 3?
In engines with multiple cylinder banks, like V6 or V8 engines, you’ll have two sides or “banks” of cylinders. Bank 1 typically refers to the side of the engine where cylinder 1 is located, and Bank 2 is on the opposite side.
Each bank has its own exhaust line, and each exhaust line is equipped with two catalytic converters. Now, here’s where the oxygen sensors come in—each catalytic converter has two oxygen sensors: an upstream sensor, which we call Sensor 1, and a downstream sensor, known as Sensor 2.
In some cases, there might even be a 3rd oxygen sensor further downstream, positioned after Sensor 2.
So, when we talk about Bank 1 Sensor 3, we’re focusing on the third oxygen sensor that’s downstream from the engine on Bank 1.
How To Fix P0042?
Troubleshooting P0042 involves several steps, and we’ll discuss each one in detail. Let’s get started!
Before diving into specific repairs, perform an OBD-II scanner reset to clear the codes. Sometimes, these codes pop up due to recent maintenance work and can resolve themselves after a reset.
To reset the error codes, use an OBD-II scanner. Simply connect the scanner to your vehicle, follow the instructions to clear the trouble codes, and see if the P0042 code reappears.
If the code comes back, it means there’s a persistent issue that needs further troubleshooting.
Step #1 – Start by visually inspecting the heated oxygen sensor.
Carefully examine the sensor itself, along with the wiring and connectors. Look for any signs of physical damage, such as cracks, frayed wires, or loose connections.
Fix: If any damage is found, replace the faulty sensor or repair the wiring before clearing the code.
- 【REPLACE#】15716, 15717, 15718, 15719, ZZC318861, XR3Z9G444CA, 15664, 234-4401, 234-4046. IF THE PLUG OF THE O2 SENSOR IS…
- 【REPLACEMENT FOR】2003-2014 Ford E150 E250 | 1999-2016 Ford E350 Super Duty | 2001-2010 Ford Escape | 1997-2011 Ford Expe…
- 【12-MONTH WARRANTY】If for any reason at all, you are not fully satisfied with the upstream downstream oxygen sensor, sim…
Step #2 – Check for a blown fuse.
First, locate your car’s fuse box. You’ll need to find the specific fuse that controls the oxygen sensor heater circuit. To do that, check the diagram on the back of the fuse box cover—it’ll tell you which fuse is the one you’re looking for.
Fix: Once you’ve found the fuse, inspect it closely. If the fuse link is broken, it’ll need to be replaced.
- 【Meet all your needed size】– The fuse kit includes micro size 50pcs, mini size 160pcs and standard size 90pcs. Three st…
- 【Reasonable quantity matching】– We increase the number of fuses with commonly used current specifications of 10A/ 15A/ …
- 【High quality and wide application】– The fuse is made of environmentally friendly plastic and zinc alloy. The blade fus…
Step #3 – Check for broken wires.
Next, check the wiring around the oxygen sensor. Look for any broken or frayed wires. If you spot any damage, repair the wires and recheck to see if the P0042 code is cleared.
If the fuse and wiring are in good condition, but the P0042 code persists. Let’s move on to the next step.
Test: Use a digital multimeter to perform a continuity test on the wiring between the sensor and the ECM. This ensures there are no open circuits or high resistance in the wiring.
- Additional Tips – The following incorrect operations may cause the multimeter not to show results: Firstly, the plugs of…
- Versatile Digital Multimeter – Accurately measures AC/DC Voltage, DC Current, Resistance, and Diode. This Multimeter is …
- Troubleshooting with Accuracy – This Multimeter has a sampling speed of 2 times per second; Built-in a backlight LCD dis…
Step #4 – Test the oxygen sensor heater.
Oxygen sensors typically have four wires. Two of these wires, usually of the same color, are dedicated to the heater circuit within the sensor.
To test the heater circuit, you’ll need a multimeter. Set the multimeter to check for continuity, then place the probes on the two heater wires. If the circuit has continuity, the multimeter will beep, indicating that the heater is functioning.
If there’s no beep, it means the heater circuit is broken, and you’ll need to replace the oxygen sensor.
- CEL Doctor: The ANCEL AD310 is one of the best-selling OBD II scanners on the market and is recommended by Scotty Kilmer…
- Sturdy and Compact: Equipped with a 2.5 foot cable made of very thick, flexible insulation. It is important to have a st…
- Accurate Fast and Easy to Use: The AD310 scanner can help you or your mechanic understand if your car is in good conditi…
If the P0042 code reappears, this likely points to a more persistent issue requiring further diagnosis.
Step #5 – Check Exhaust Leaks
Cracks or leaks in the exhaust manifold, catalytic converter, muffler, or exhaust pipes can let extra oxygen into the system. This causes incorrect O2 sensor readings, which may trigger fault codes like P0042.
Fix: For small leaks, you can use MufflerSeal (an iron-reinforced paste) to seal mufflers, pipe joints, and exhaust cracks.
