What does the P0001 Fuel Volume Regulator Control Circuit/Open mean?
The “P” prefix in the code denotes that it’s related to a powertrain issue. The P0001 code is a generic powertrain code indicating a problem with the fuel volume regulator control circuit. The fuel volume regulator is tasked with regulating the fuel pressure and flow within the fuel system.
When the error code P0001 is triggered, it signifies an issue with the fuel volume regulator control, and specifically, an open circuit. This means that the sensor or component is not receiving the necessary reference voltage required for proper functioning.
When the P0001 Triggers?
The P0001 code indicates that the Powertrain Control Module (PCM) has detected an open or fault in the Fuel Volume Regulator Control Circuit.

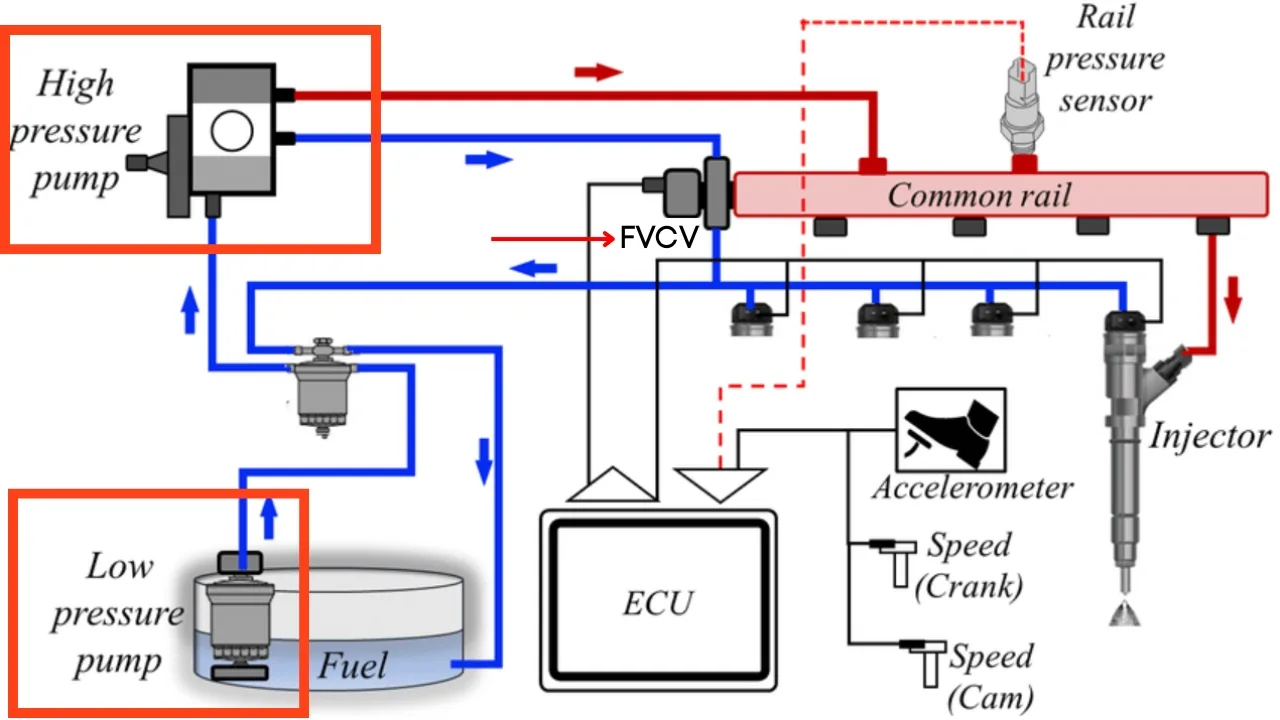

In modern common-rail diesel and gasoline direct injection systems, fuel delivery is precisely managed through two sides:
- Low-pressure side: Includes the fuel tank, lift pump, filters, water separator, bleeder valves, and fuel lines.
- High-pressure side: Typically includes a high-pressure fuel pump and fuel rail that supply the injectors.
At the heart of the high-pressure system is the Fuel Volume Control Valve (FVCV), which is mounted on the high-pressure fuel pump. Its job is to regulate the volume of fuel entering the pump’s high-pressure section, based on the engine’s current load and speed.
The FVCV is a duty-cycle controlled solenoid, operated by the PCM. One terminal of the solenoid receives battery voltage, while the PCM controls the other terminal by switching it to ground at precise intervals.

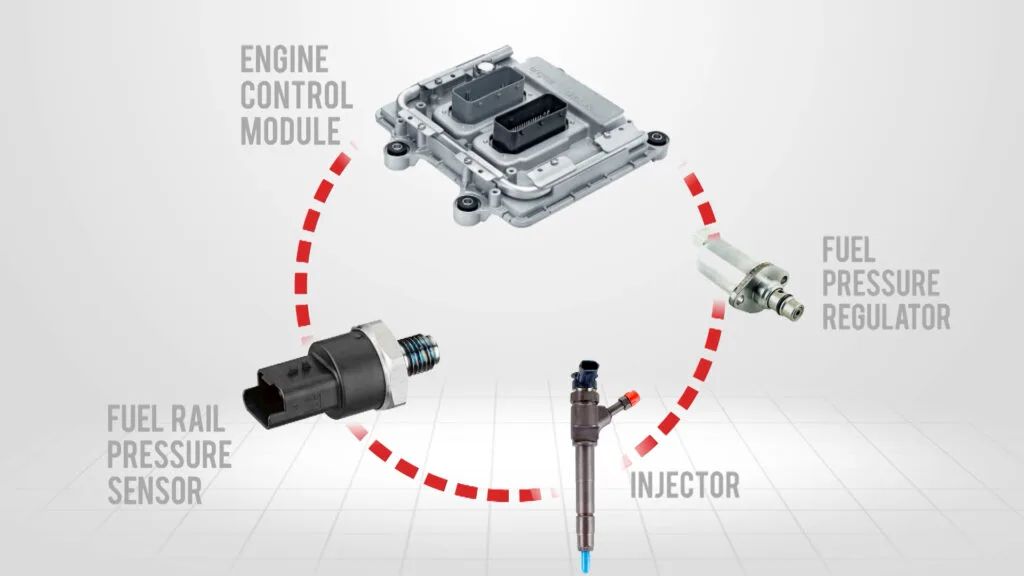

Together with the Fuel Pressure Control Valve (FPCV), the FVCV maintains the correct fuel supply and pressure. The fuel pressure sensor continuously monitors system pressure and provides feedback to the PCM for closed-loop regulation.

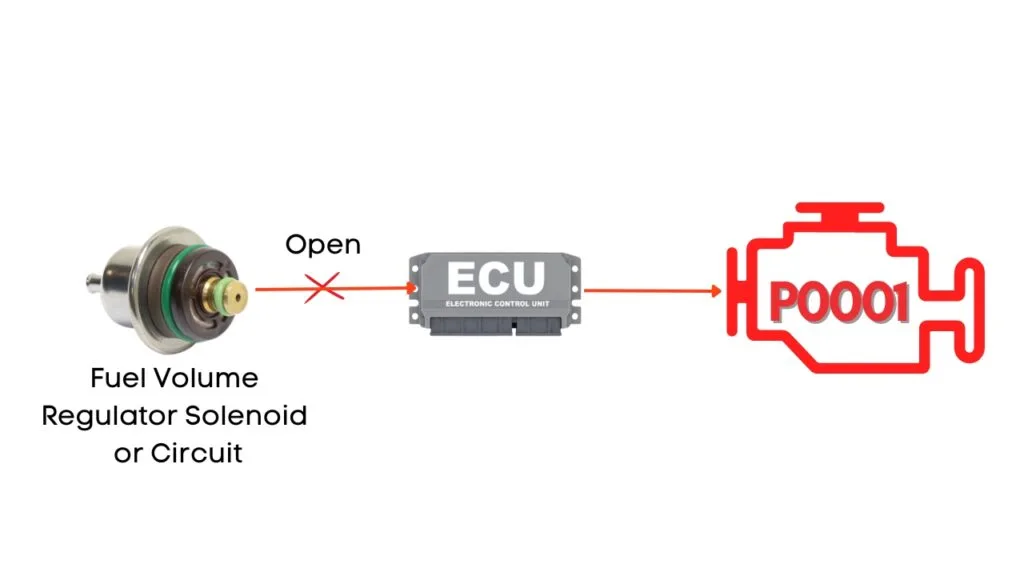

When the PCM detects an open circuit, voltage anomaly, or no response from the FVCV control circuit, it stores code P0001 and turns on the check engine light.
The ECM uses the feedback from the fuel pressure sensor and data from other sensors (such as the mass air flow sensor, intake air temperature sensor, and throttle position sensor) to calculate the required amount of fuel.
How To Fix P0001?
Troubleshooting P0001 involves several steps, and we’ll discuss each one in detail. Let’s get started!
Before diving into specific repairs, perform an OBD-II scanner reset to clear the codes. Sometimes, these codes pop up due to recent maintenance work and can resolve themselves after a reset.
To reset the error codes, use an OBD-II scanner. Simply connect the scanner to your vehicle, follow the instructions to clear the trouble codes, and see if the P0001 code reappears.
If the code comes back, it means there’s a persistent issue that needs further troubleshooting.
Possible Root Causes of P0001
Some common root causes of the P0001 error code include:
1. Clogged Fuel Volume Control Valve (FVCV)
The valve may become clogged due to contaminated fuel, restricting proper fuel flow and causing the PCM to lose control of fuel volume regulation. Dirt, debris, or varnish buildup inside the valve can interfere with its movement or sealing, leading to the P0001 code.
Fix: Use a high-quality fuel line or injector cleaner. If the clog is within the fuel line, this can help dissolve the blockage and restore proper flow. For severe contamination, consider removing and cleaning or replacing the valve.
- Package Dimension : 2.24 ” L x 2.24 ” W x 7.96 ” H
- Country of Origin: GERMANY
- Model Number : 2030
2. Faulty Fuel Volume Control Valve (FVCV)
The valve itself may be defective due to internal electrical failure, corrosion, or mechanical blockage. A damaged solenoid coil or internal sticking can prevent the valve from properly regulating fuel flow, leading to circuit faults and triggering the P0001 code.
Fix: Replace the Fuel Volume Control Valve (FVCV) with a new one to restore proper fuel regulation and system performance.
- 【Compatible】: Fuel Meter Quantity Control Valve A0000900069 is compatible with 2007-2022 Freightliner Cascadia, Colornad…
- 【Replacement OE Part Number】:Fuel Pump Metering Unit A0000900069, 0000900069,F00N210196, F00N210223, DDE A0000900069, DD…
- 【High Quality】: BSNOVT Fuel Quantity Valve Made of high-quality materials.Precision machined for durability & reliabilit…
3. Open or Shorted Wiring in the FVCV Circuit
Wiring problems such as open circuits, shorted wires, or corroded connectors can interrupt the electrical communication between the Fuel Volume Control Valve (FVCV) and the Powertrain Control Module (PCM). This prevents the valve from receiving the correct signals, leading to improper fuel control and triggering the P0001 code.
Fix: Inspect the wiring harness and connectors for damage or corrosion. Use a digital multimeter (DMM) to check for continuity and proper voltage in the circuit. Repair or replace any damaged sections.
